SUPER STAR Ⅲ—BOTTOM PRINTING OPEN-CLOSE TYPE/FFG & STITCHER

SUPER STAR Ⅲ—BOTTOM PRINTING OPEN-CLOSE TYPE/FFG & STITCHER
MACHINE FEATURES:
Well-established design philosophy for bottom printing machine inline with folder gluer & stitcher
Informationization management combine with the logistics planning of entire factory
Multiple use to satisfy the different order change
Save space, shorten the process, and greatly reduce the human cost
Integration control, easy operation
Multiple pre-creasing to reinforce the folding and shaping quality precisely control the folding accuracy
  • Super intelligence production management system
  • Multi machines field monitoring production capability
  • Ready to connect ERP, information management
  • Automatic stored and recalled orders,quick order change and high efficiency
  • Central control monitoring order preparation,reducing communication and time cost
  • Remote diagnose and intelligent maintenance reminder, reducing down-time and maintenance cost
  • Feeder unit
  • Servo motor drive lead edge feeding system
  • Electronic adjustable feeding stroke
  • Extended anti-static dust removing system, reduce the down-time for printing plate cleaning
  • Printer unit
  • Vacuum paperboard transfer system
  • Quick-lock or matthews plate mounting system
  • Roll-to-roll or single/chamber doctor blade
  • Optional: Double-side printing
  • Optional: Transfer unit

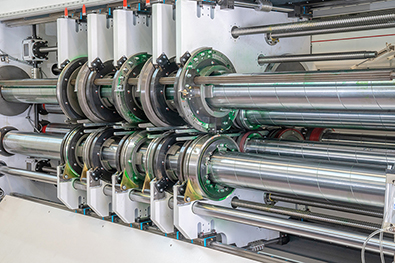

  • Slotter unit
  • Single shaft with double creasers slotter
  • The slotting boss move along linear bearing driven by lead screw for more flexible and precise movement
  • Optional: Double shafts slotter or Extended servo driven slotter
  • Die-cutter unit
  • Independent servo motor drive for anvil cover cylinder, side to side oscillation of anvil cylinder 50mm
  • Micro grind anvil trimming system: when every 10,000 pieces are die-cutting, the system will adjust the anvil cylinder speed according to maintain a constant speed with the die cylinder and paperboard
  • Optional: Independent servo motor drive for die cylinder
  • Optional: Micro grind anvil trimming syste adopt tungsten carbide steel roll
  • Optional: Quick lock mounting system reduce the wood die change time
  • Introduction
  • ①Creasing & folding transfer unit:• Vacuum belt transfer with creasing and folding device to achieve accurate creasing• 90 degrees of paperboard folding with multiple precreasing to achieve accurate folding
  • ②Shaping unit:• Patented box shaping calibration function to assure the fishtail and gap tolerance accuracy • Shaping calibration for each box, max. speed up to 167pcs/min
  • ③Stitching unit:• Germany-made swing type stitching head with speed 1290 stitches/min • Tracking type stitching technology to avoid damage of paperboard (Including recycled or heavy paperboard etc.)
  • ④Counter ejector:• Free set counting quantity for each bundle • With fishtail calibration system to synchronize with shaping section and assure the fishtail tolerance accuracy
